Mains Power Charger

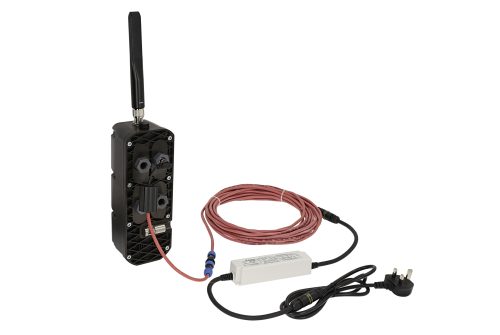

The Mains Power Charger (EU), with order code 72413, serves as a crucial component for charging Reconeyez Detector and Bridge batteries. Notably, it is distinct from the solar battery, as emphasized by separate order codes (72413 for the charger and 72410 for the solar battery). Operating with an input voltage range of 100-240 VAC and a maximum charging current of 2A, it reaches a peak battery voltage of 4.2V, with a battery NTC value of 10k. Environmental specifications include a working temperature range from -20 to +35°C and an IP rating of 67, ensuring durability in various conditions. The mechanical structure comprises two components – a power adapter (150 mm x 40 mm x 35 mm) and a solar charger (40 mm x 25 mm x 25 mm), connected by 11.5 meters of cables. The total weight of the charger with cabling (excluding the battery) is 1.2 kg.
